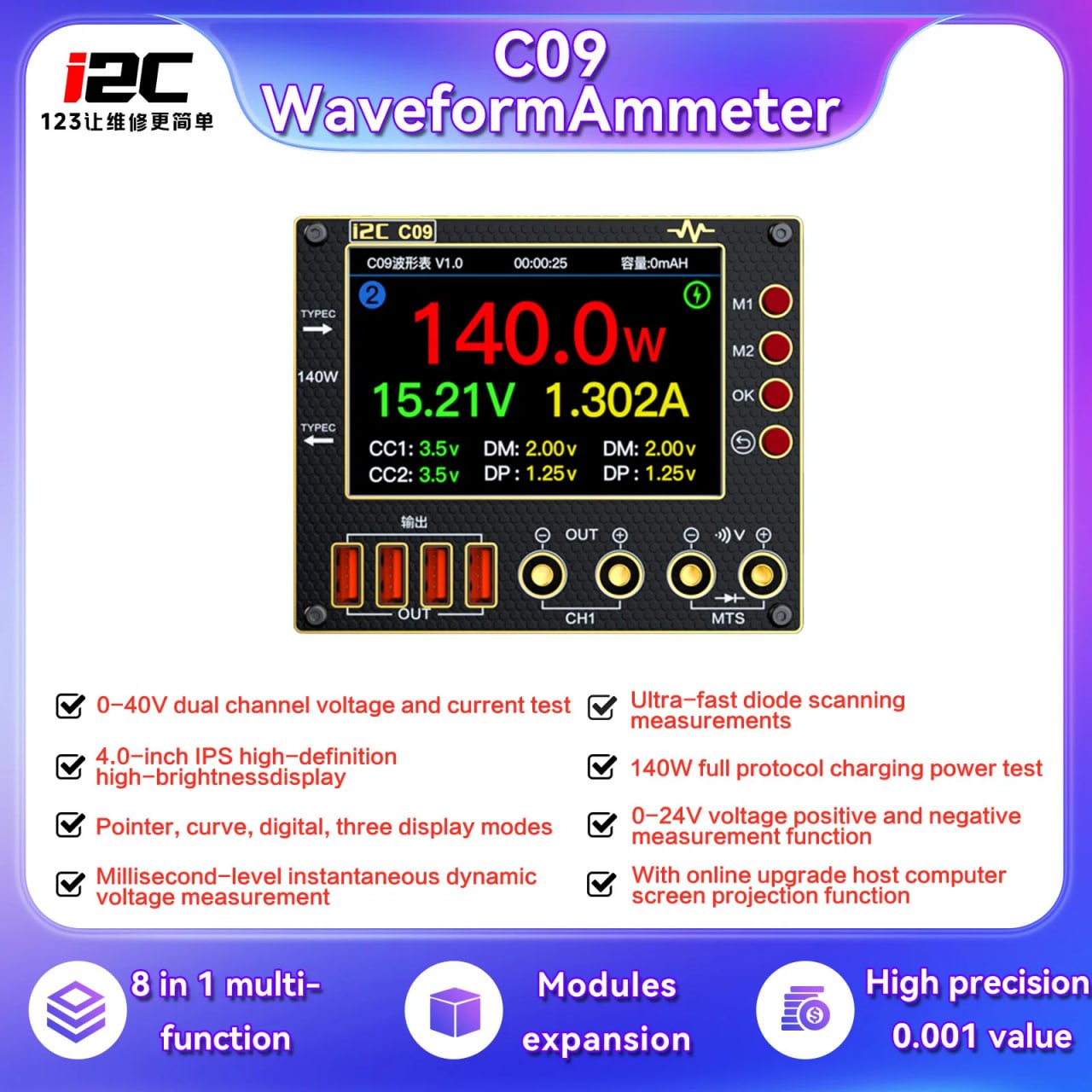

i2C C09 Digital Waveform Ammeter with Charge Detection / Voltage Measurement
₹5,067.00 ₹7,999.00
i2C C09 is a versatile digital waveform ammeter that supports dual-channel voltage and current testing from 0 to 40V, along with 140W full-protocol charging power testing. It also offers advanced functions such as voltage measurement, diode scanning, and more. Featuring three display modes—analog pointer, waveform curve, and digital readout—it provides clear, real-time data for efficient diagnostics. Ideal for mobile phone repair shops and electronic service centers, the i2C C09 significantly enhances troubleshooting speed and accuracy.
Description
i2C C09 Digital Waveform Ammeter with Charge Detection / Voltage Measurement
I2C C09 Waveform Ammeter Package 2 (Waveform Meter + Voltage + Charger Test + Expansion Board)
Features:

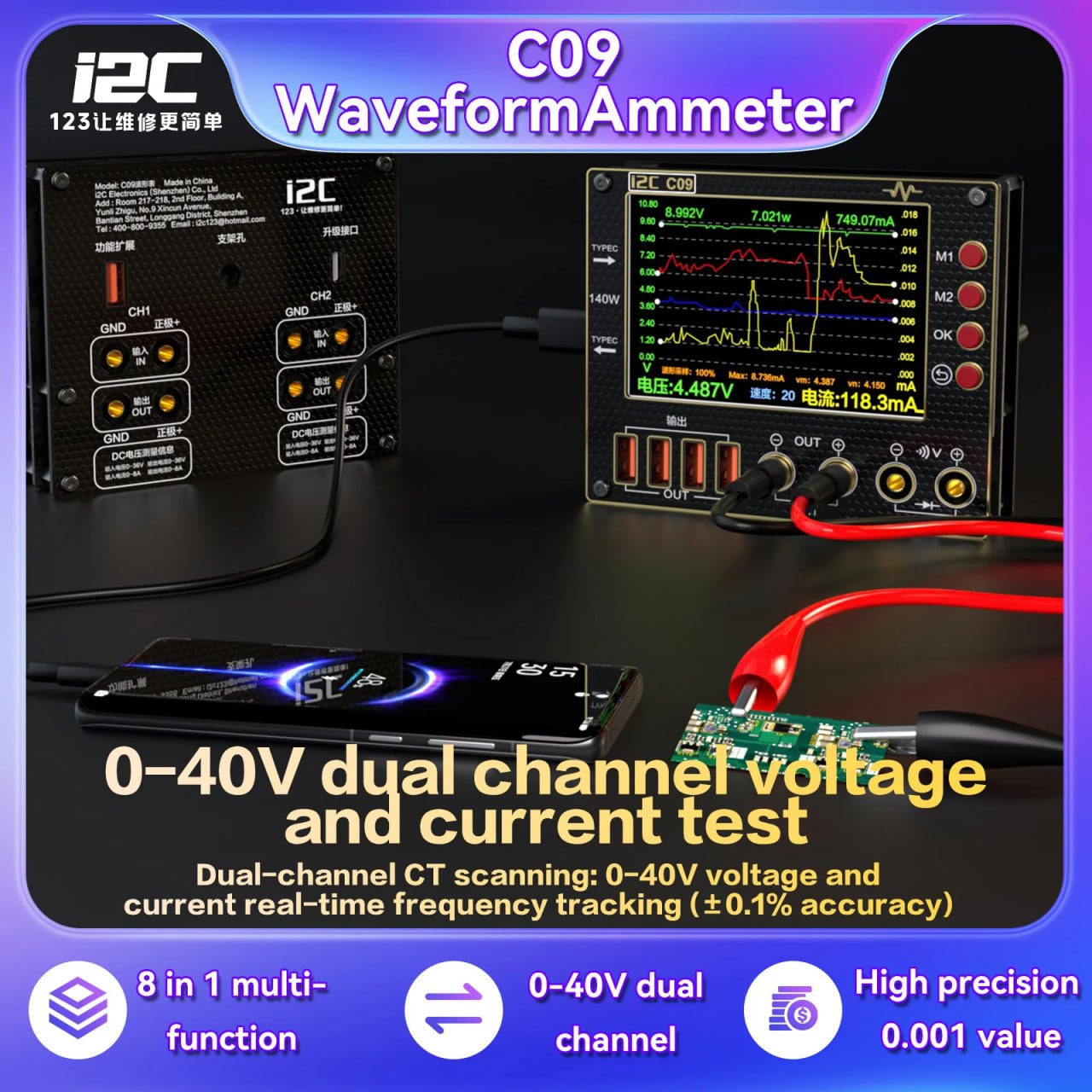

- 0~40V Dual-channel voltage and current testing
- 4.0-inch IPS high-definition high-brightness display
- Three display modes: pointer, curve, and digital
- Millisecond-level instantaneous dynamic voltage measurement
- Ultra-high-speed diode scanning measurement
- 140W full-protocol charging power testing
- 0-24V positive/negative voltage measurement function
- Supports online upgrades and PC screen projection functionality
Specification:
- Input voltage DC: 0~40V
- Device power supply: 5V / 2A
- Diode test: 0~2.8V
- Effective resistance: 0~50K
- Voltage measurement: 0~24V
- Two-channel voltage measurement: 0~40V
- Detection current: 0~8A
- Protection voltage: <60V
- Protection current: <15A
- Banana plug output voltage and current: 40V/8A
- USB output voltage and current: 20V/2A
- Voltage resolution: 1mV
- Current resolution: 0.1mA
- Current accuracy: 100μA
- Screen size: 4.0-inch
- Screen resolution: 320*480
- Product size: 11.4*9.3*2.9cm
Package includes:
- According to your choice
