XINZHIZAO XZZ 4 In 1 iSocket Motherboard Layered Test Fixture For iPhone14 / 14 Plus/14 Pro/14 Pro Max Middle Frame Test

Xinzhizao Motherboard Layered Fixture 4in1 iSocket Tester Fixture for iPhone 14 14plus 14Pro Max Middle Layer Function Testing

Features:
Xinzhizao 14 Series 4-in-1 Motherboard Layered Test Fixture for iPhone 14 / 14Plus / 14 Pro / 14Pro Max
Solve the problem of maintenance personnel’s testing of layered motherboards, save a lot of complicated processes, and make motherboard testing simple and fast
Reasonable use of limited space design, non-market patchwork, more stable design with heart
Simple and fast operation, easy to use
This is designed in a light and compact shape, which can be directly placed under the microscope for observation to improve work efficiency
There is a middle frame, no need to place spacers, and the RF main board, pin board, and logic main board are laminated and stacked on the test frame base in turn.
For use without a middle frame, first, place the gasket on the base of the test frame, and then place the RF motherboard, pin board, and logic motherboard on the base of the test frame.
The double-headed probe accurately aligns the small holes to improve the contact performance, the fixed buckle is buckled, the motherboard does not warp, and the test data is more accurate
High-precision CNC machine tool processing, control of every detail

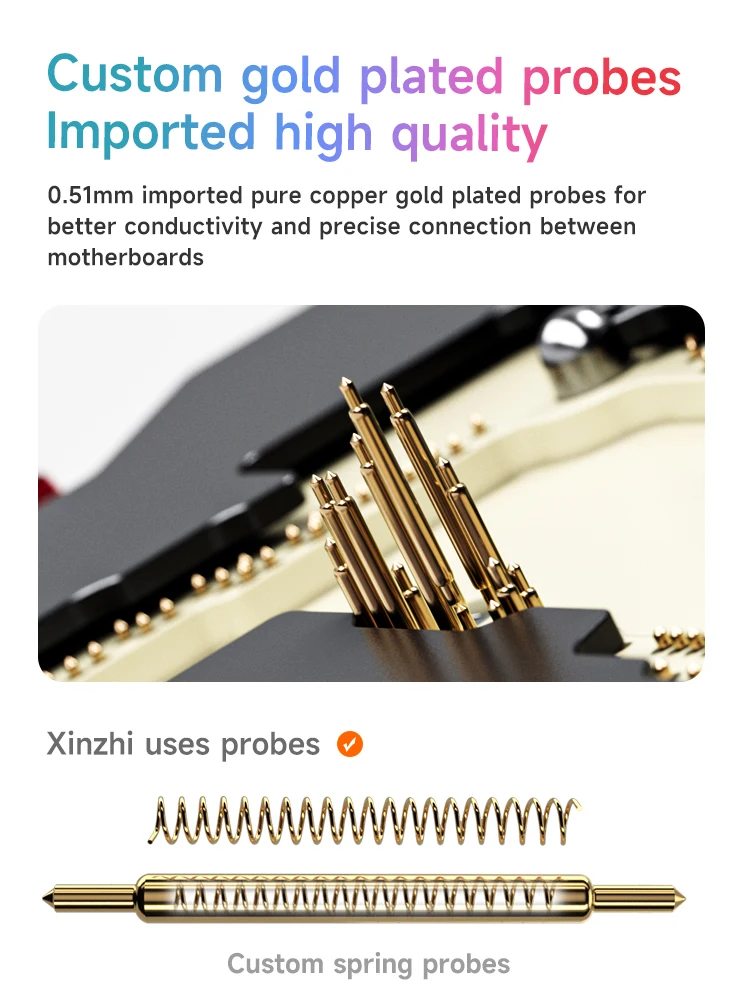

Using a high-quality beryllium copper spring probe, with good conductivity, product overload stability, small deviation of detection value, and more accuracy, the tapered probe is not easy to get rosin, solder
The selection of materials for each component has undergone strict experimental tests, with high hardness, not easy to deform, and maximizes service life

Package includes:
1 x Test Fixture
2 x Pinboard
