TBK 988C 360° Rotating Tilt LCD Screen Separator for Flat & Curved Screens
₹6,999.00 ₹7,999.00
TBK 988C is a multi-functional and easy-to-use LCD screen separator designed for mobile phone repair. It efficiently separates both straight and curved screens with its powerful built-in dual vacuum pump system, ensuring the device stays firmly in place. The machine features a versatile worktable that can be rotated 360 degrees and tilted left or right, providing the perfect angle for any task. With its stable, constant temperature heating and simple one-button start, the TBK-988C makes screen separation a straightforward and reliable process.
Out of stock
TBK 988C 360° Rotating Tilt LCD Screen Separator for Flat & Curved Screens
TBK 988C 360° Rotation 7-inch LCD Screen Separator Machine Built-in Double Large Vacuum Pump
Features:
- Can be tilted left and right, with 360-degree rotation for easy operation
- Straight screen and curved screen are separated easily without pressure
- The front screen and back cover are removable
- Built-in dual large vacuum pumps and a new vacuum brake button

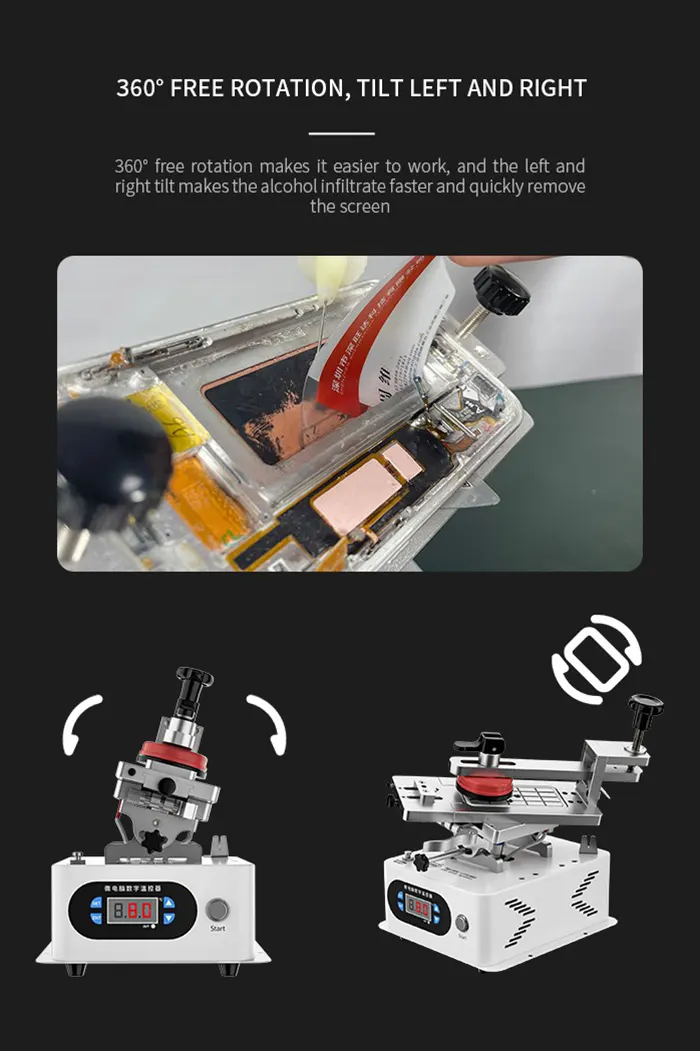

- 360 free rotation makes it easier to work, and the left and right tilt makes the alcohol infiltrate faster and quickly remove the screen

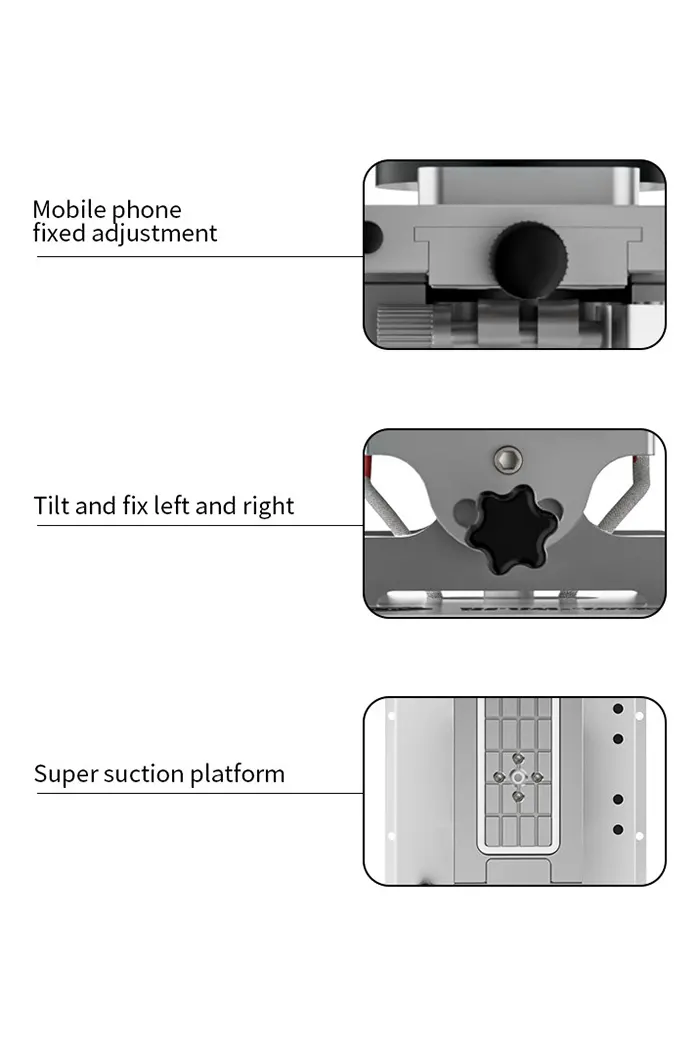

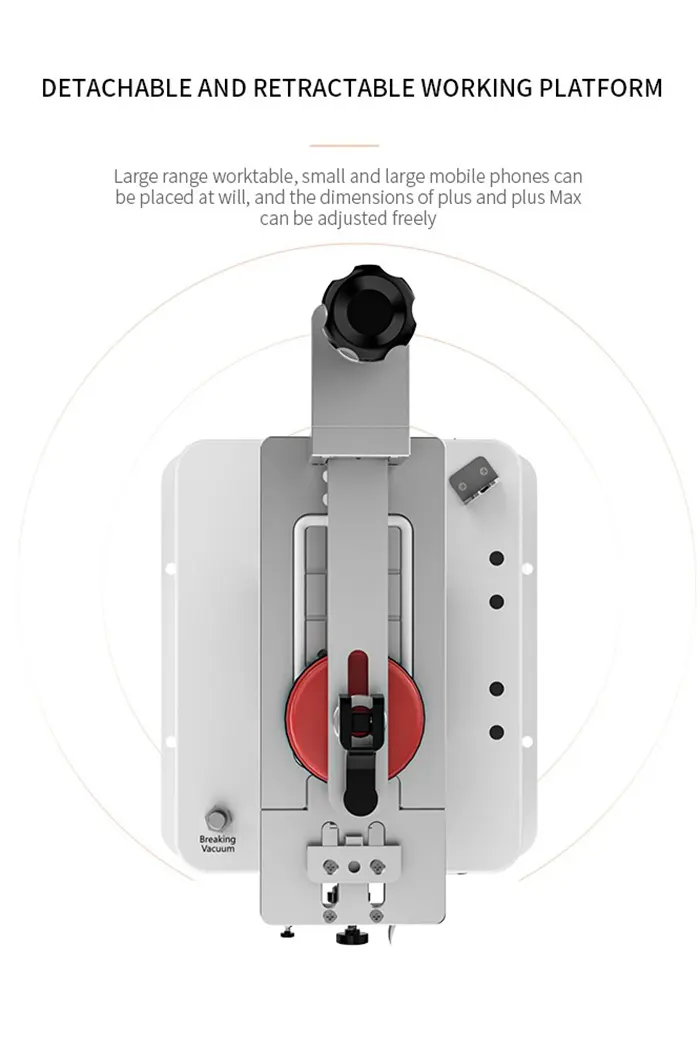

- Large range worktables, small and large mobile phones can be placed at will, and the dimensions can be adjusted freely
- There are different positioning of mobile phones on both sides of the worktable, which can be adjusted freely according to the size of the mobile phone
- Super suction power solves the problem of screen movement when the straight screen or curved screen is separated
- Replace the heating core for faster and more stable heating

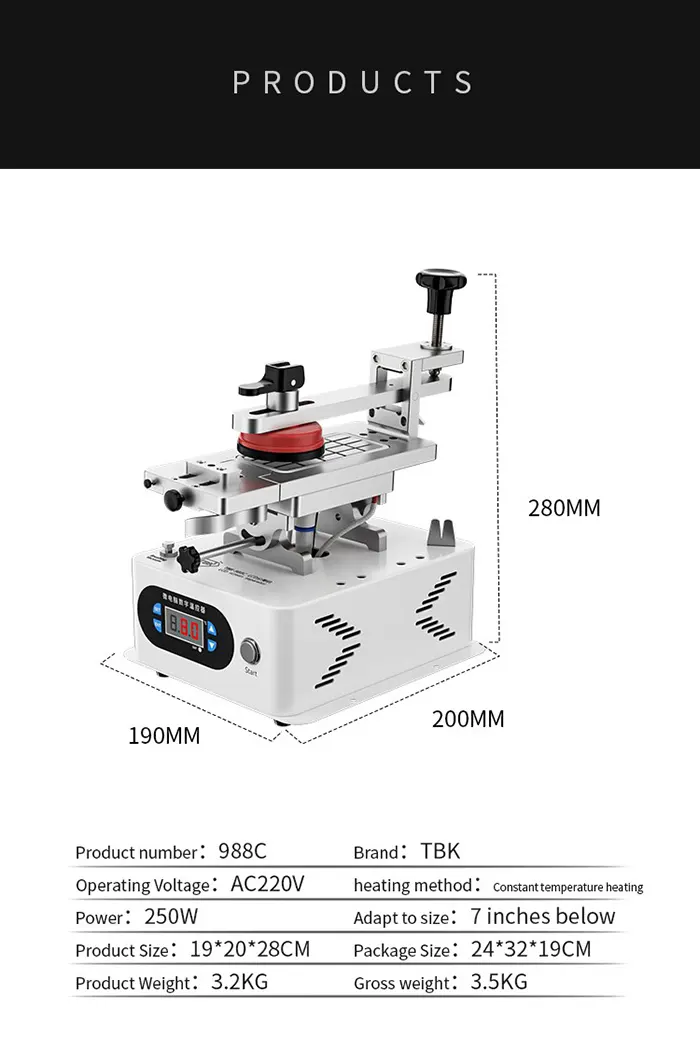

Specification:
- Brand: TBK
- Product number: 988C
- Operating Voltage: AC110V/220V
- Power: 250W
- Heating method: Constant temperature heating
- Adapt to size: 7 inches below
- Product size: 19*20*28cm
- Package size: 24*32*19cm
- Product Weight: 3.2kg
- Gross weight: 3.5kg
Operation Steps:
- Turn on the power: Insert the power cord into the power port on the back of the separator, and turn on the power switch

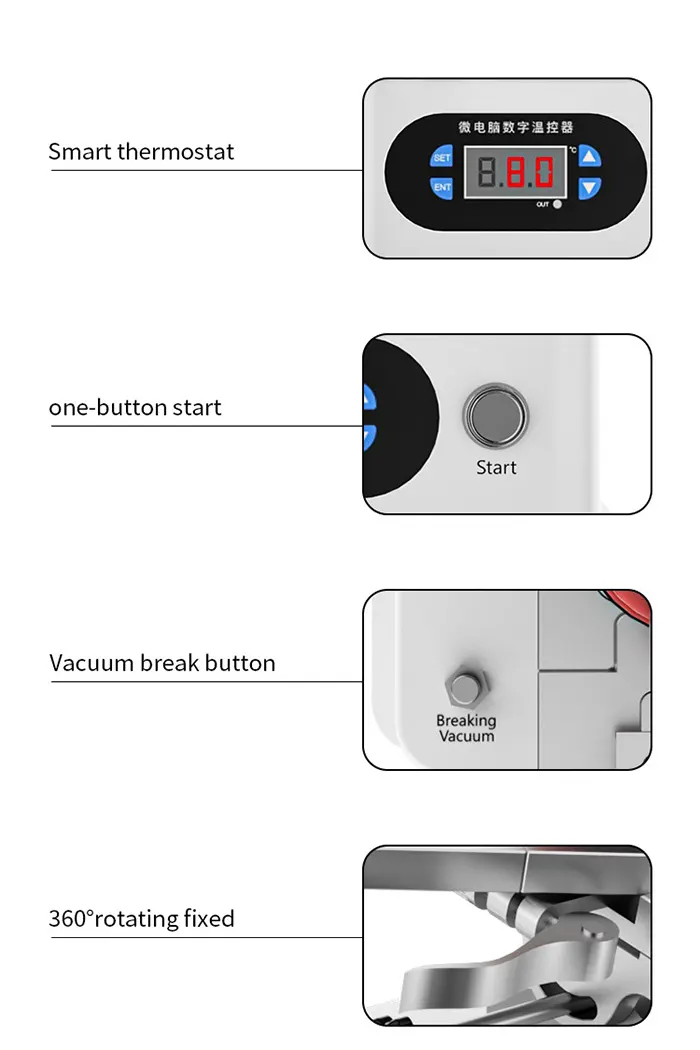

- Preset temperature: Press the SET button to preset the temperature, press the up button to set the temperature at around 85 degrees, and press ENT to save
- Prepare wire handle: Equipped with a wire handle to separate the screen
- Place the silicone anti-skid pad: Place it on the panel of the separator, align the rubber pad with the panel hole, or do not use the silicone pad
- Preparation for screen separation: Put the screen to be separated into the center of the panel, press the start button to start vacuum adsorption, and make sure that the screen is sucked
- Start cutting screen: the screen can be preheated for 3-5 minutes to start cutting
- After separating the burst screen, turn off the power of the separator. If it is dry glue, you can tear it off directly by hand(Watch out for burns!!!). If it is water glue, it needs to be removed with a blade and a glue removal liquid
Package includes:
- 1 x Separator Machine
- 1 x Power Cable
