Mr.Yang TI-308 High-Definition Thermal Imaging Camera

Mr.Yang TI-308 High-Definition Thermal Imaging Camera with Wide Temperature Measurement Range

Mr.Yang TI-308 (English name: Master Young TI-308 Mini High-Resolution Thermal Imaging) is a specialized mini thermal imaging camera. It is optimized for connection via a Type-C port, allowing thermal images to be output directly to a computer or monitor.

Featuring a robust metal design, a compact size that fits in the palm of your hand, and a manual focus lens, the device enables users to easily detect abnormal heat sources—such as short circuits, burning components, or electrical leakage—on the circuit boards of smartphones, tablets, and other complex electronic devices.

Detailed Technical Specifications
The Master Young TI-308 thermal camera boasts impressive specifications:

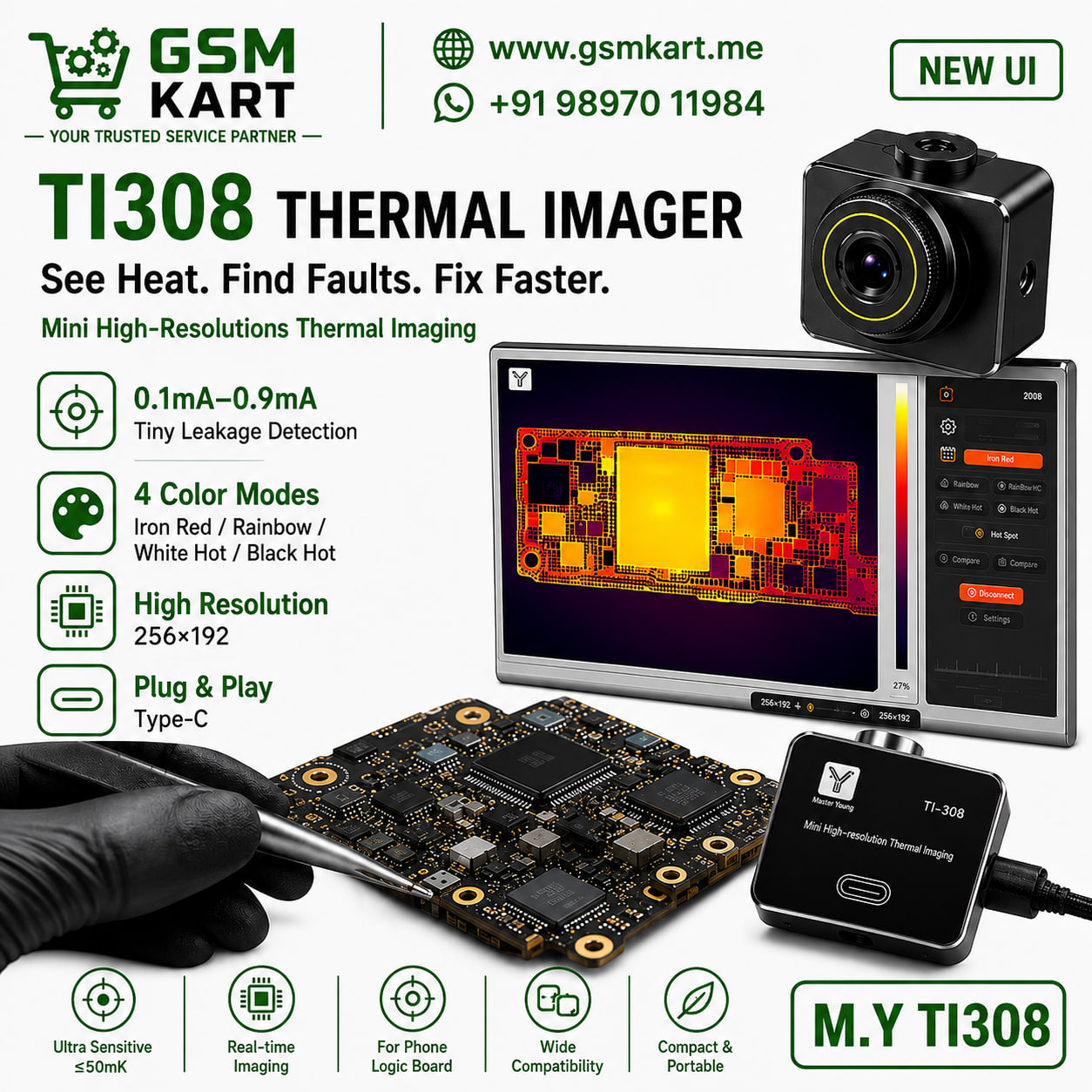

Brand / Model: Master Young TI-308 (Mini High-Resolution Thermal Imaging).

IR Resolution: 256 x 192 pixels – delivers sharp thermal images, clearly distinguishing between closely spaced components.

Pixel Pitch: 12 μm – optimizes thermal sensitivity and spatial resolution.

Lens Focal Length / Aperture: F6.9 – supports precise close-range (macro) focusing when inspecting circuit boards.

Connection Port: USB Type-C – ensures fast connectivity and smooth data transmission.

Mounting Standard: Equipped with a standard 1/4-inch threaded hole at the base for secure mounting onto a tripod or microscope stand.

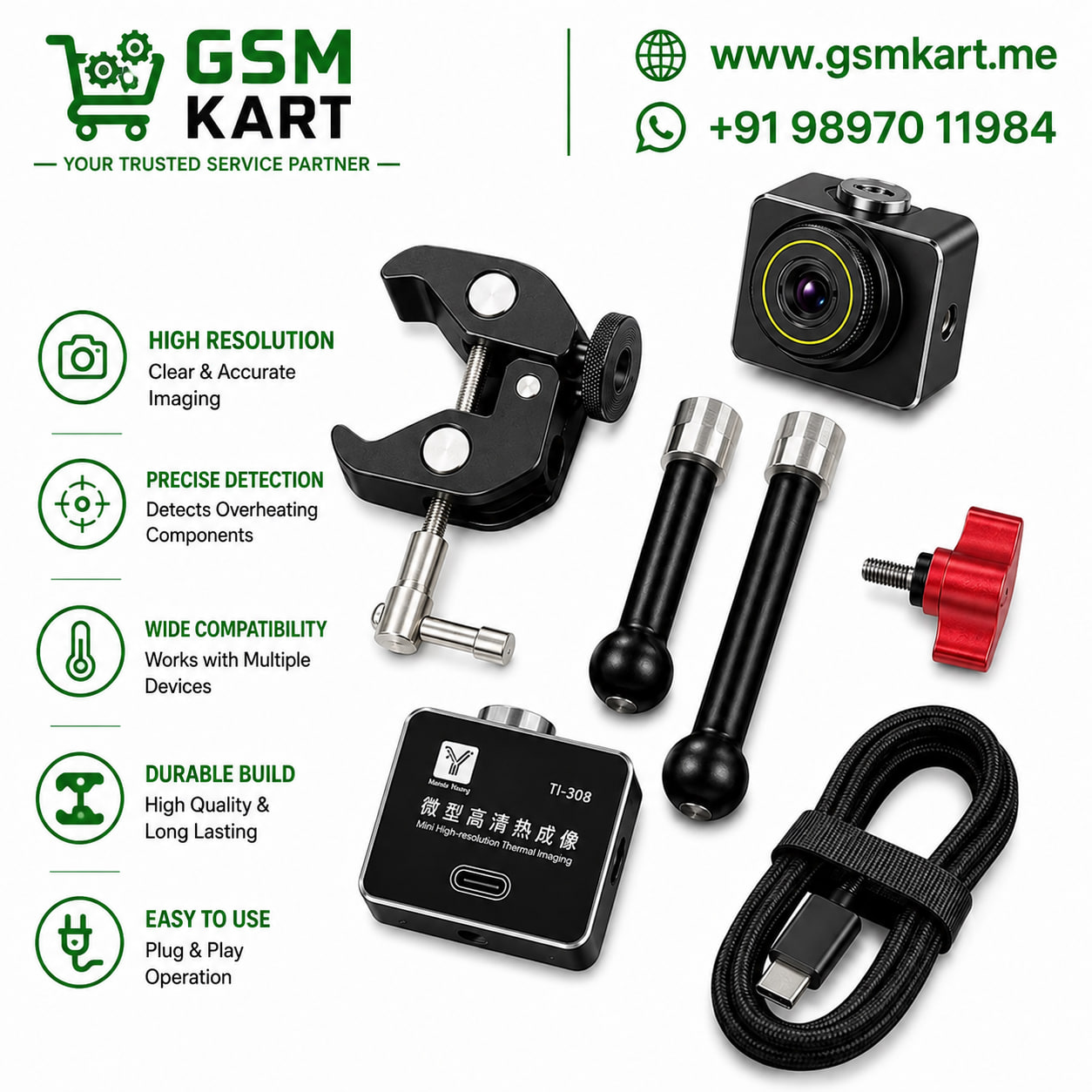

Ultra-compact design and premium metal housing
Unlike bulky handheld thermal cameras, the Master Young TI-308 features an ultra-compact, box-like design. Its housing is crafted from a solid aluminum alloy with a matte, dark gray brushed finish, offering a premium look, excellent heat dissipation, and exceptional durability.

Precise manual focus capability
The camera lens is equipped with a flexible focus ring (featuring a signature green accent). Thanks to the integrated 12 μm sensor, the device allows for precise manual focusing, enabling you to zoom in sharply on individual ICs.

Easy connectivity via Type-C port
A USB Type-C port is integrated directly into the rear of the unit. Simply connect the device to a computer or display monitor to use the dedicated thermal imaging diagnostic software and monitor temperature readings in real-time.

Practical Applications of the Master Young TI-308
The thermal imaging technology in the Master Young TI-308 thermal camera effectively solves the challenge of locating faulty components—a task that is often time-consuming with traditional measurement methods:

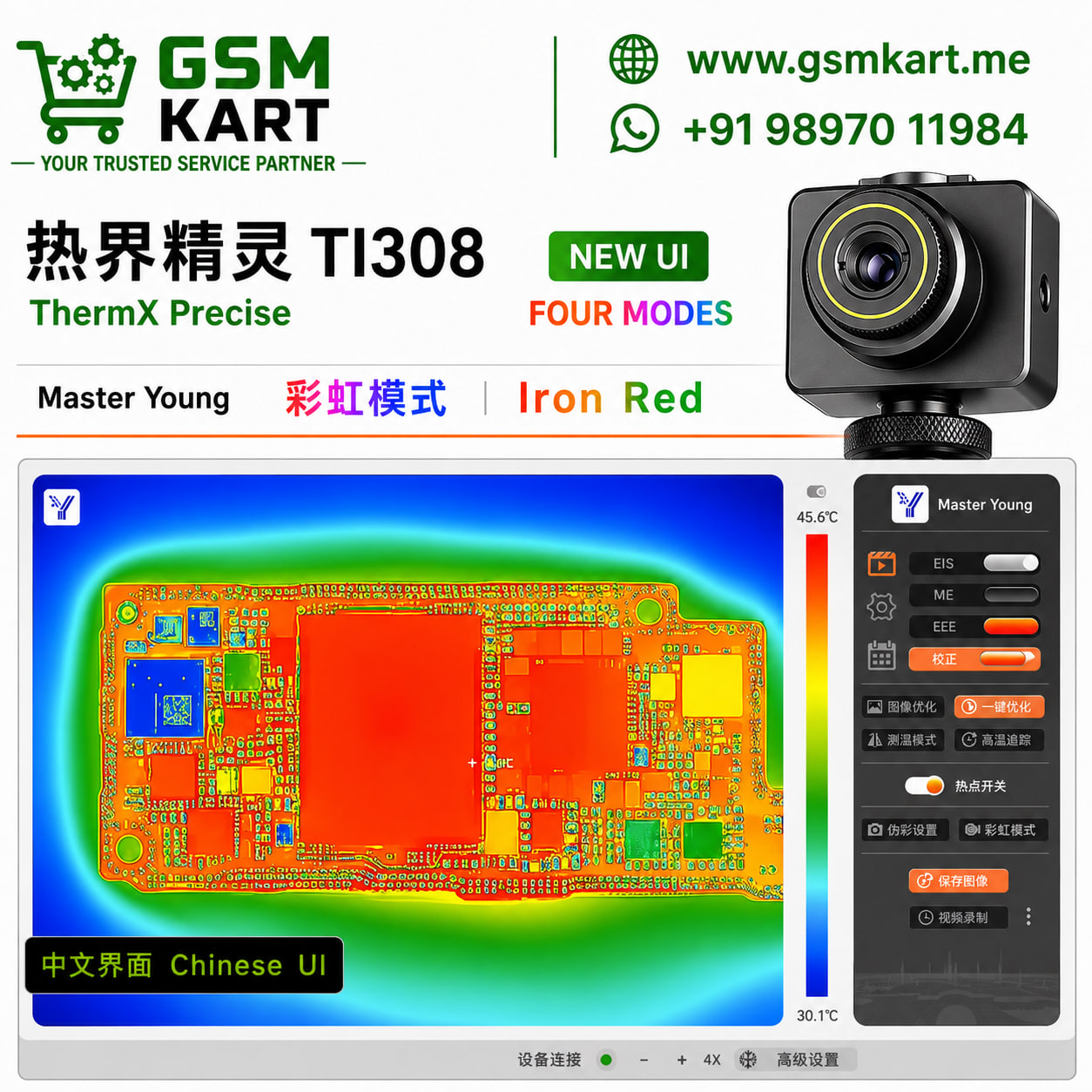

Detecting Short Circuits/Leakage: When power is applied to a shorted circuit board, the faulty component heats up rapidly. The Master Young TI-308 instantly displays this area in bright red or yellow, allowing technicians to pinpoint the defective capacitor or IC within seconds.

Real-Time Temperature Measurement: The accompanying software accurately displays peak temperatures (hotspots) and average temperatures, while also correlating electrical data (Amps/Volts) for load analysis.

Checking for Abnormal Overheating: It supports the inspection of heat sinks for CPUs, GPUs, and power ICs in smartphones, laptops, PCs, and industrial circuit boards.

Conclusion on the Master Young TI-308
If you are looking for a professional, high-resolution thermal imaging diagnostic tool that remains compact and convenient, the Master Young TI-308 thermal camera is a worthwhile investment. Its advanced thermal imaging technology will help enhance both speed and accuracy in your work.
