MOORC MIPITESTER/MiPi Box Pro Programmer for EMMC and UFS

Features:

UFS / UMCP / ISP – Data transfer speed

• UFS/UMCP
  • UFS 2.0 / 2.1 / 3.0 / 3.1 supported
• HS-G2 high speed mode
  • 80-130 MB/s (writing) / 100-180 MB/s (reading)
  • for 100 MB higher speed you need to use USB 3.0 + high speed SSD
• UFS ISP
  Flying Line Mode PWM-G1 6-15MB/s (reading / writing)

EMMC/EMCP – Data transfer speed

• EMMC 4.5 / 5.0 / 5.1 supported
• HS200 80-120MB/s (write) / 120MB/s (read)
• EMMC ISP 5-15MB/s (read / write)

Upgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash

• Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings
• LUN cutting
• Read / Write / Specify boot area
• Read / Write EMMC/EMCP User Area and BOOT1/2
• Read / Write advanced RPMB, GPP
• Enhanced Area settings
• Voltage output (VCC, VCCQ) 1.1 V – 3.3 V + intelligent short circuit protection

Supported BGA:

• UFS BGA 254
• UFS BGA 153
• eMMC BGA 153-169
• eMMC BGA 254
• eMMC BGA 221
• eMMC BGA 162-186

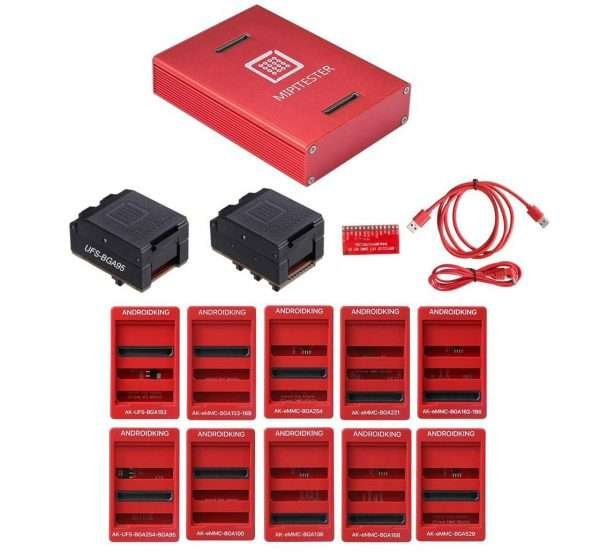

Package Content:

MiPi Box Pro – 1 pc.

MiPi eMMC/UFS ISP Adapter S2 ISP- 1 pc.

MiPi USB 3.0 Cable – 1 pc.

MiPi DC5V Power Cable – 1 pc.

MiPi UFS 254/153 Socket Adapter- 1 pc.

MiPi ANDROIDKING eMMC/UFS Socket Adapter – 11 in 1 set:

1. AK-UFS BGA 221 – 1 pc.
2. AK-eMMC BGA 254-BGA95 – 1 pc.
3. AK-UFS BGA 153 – 1 pc.
4. AK-eMMC BGA 153-169 – 1 pc.
5. AK-UFS BGA 254 – 1 pc.
6. AK-eMMC BGA 162-186 – 1 pc.

Frames (4 pcs):

1. 7,5*9
2. 11*10
3. 12*15
4. 12*16
