Description

MiPiTester eMMC UFS ISP Adapter for MiPi Tester Box Mini / Gear 2

MiPiTester eMMC UFS ISP Adapter and Type-C Connection Kit for MiPi Tester Box Mini / Gear 2

Features:
MiPi Tester eMMC / UFS ISP Adapter allows you to service any device with ISP pinouts via UFS/eMMC interface
Recommended to use a regulated power supply without USB. Press and hold the on button, the current 100~200mA, UFS power up successfully
Using a USB power supply and a battery device manager requires a CPU port. If not, the UFS power-up is unsuccessful and can not be online
UFS2.0, 2.1, 2.2 use VCC-3.3 V, VCCQ2-1.8V; UFS3.0, 3.1, 4.0 TX, RX, CLK, RST, GND all access to the flywire. The seat can no longer use a USB and a power supply; only use the host power supply.
GND TX RX signal can not exceed 15mm, GND junction point as close as possible to TX RX to keep equal length, some CPUs need RST signal wiring

Package includes:

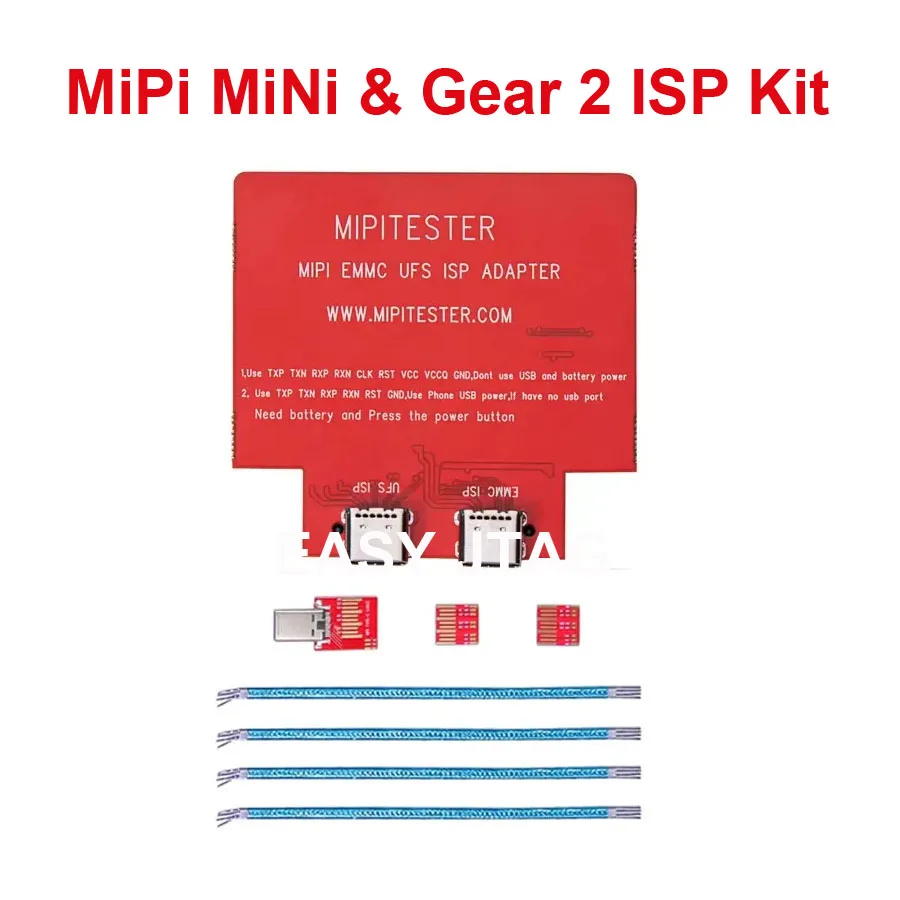

1 x MiPi eMMC / UFS ISP Adapter
1 x Type-C Connection Kit

Package Content:

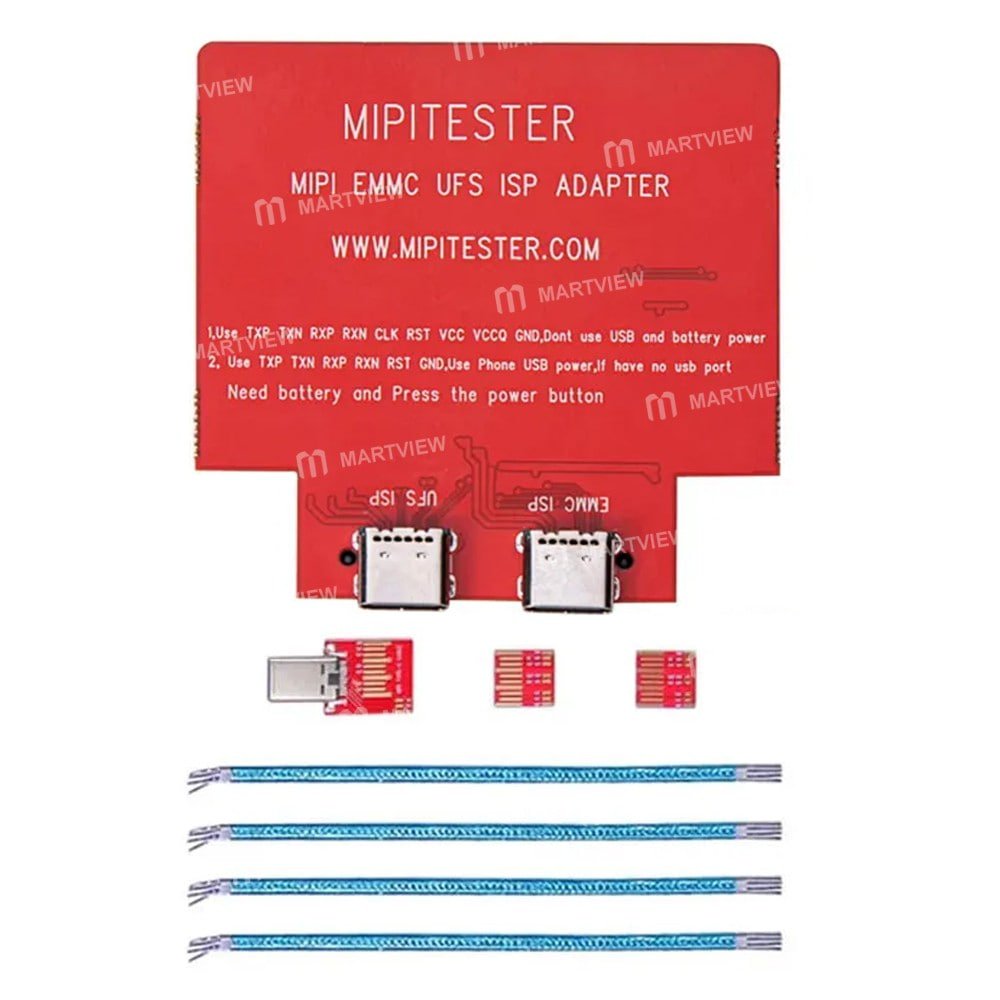

MIPITester UFS eMMC isp s2 Adapter – 1 pc

1、We recommend using a regulated power supply and the USB is not required. Press and hold the power button. If the current is 100-200mA, the UFS is successfully powered on.

2、If Using USB power and battery device Manager，the presence of a CPU port is necessary . Otherwise，the UFS fails to be powered on and cannot be connected.

3、UFS2.0 2.1 2.2 should use VCC-3.3V VCCQ2-1.8V. UFS3.0 3.1 4.0 TX RX CLK RST GND all connected to Jump wire.Similar to the socket, it can no longer use USB and power supply.But it can only use the host power supply .

4、The GND TX RX signal cannot exceed 15MM. The GND wiring point should be close to TX RX as possible. Some CPU require RST signal for wiring. TX and RX must not touch the wire.
