Description

JTX P15 Battery Charging Activation Board

JTX P15 Disassembly-Free Battery Charging Activation Board with PD Charging for iPhone 6 to 16Pro Max

Features:
Supports iPhone 6 to 16Pro Max, click and use, automatically identifies the positive and negative current poles
Automatic battery activation/charging, intelligent identification, accurate measurement, overload protection, automatic power off
The battery holders are reasonably arranged, suitable for maintenance, and can truly be activated without disassembly
There is a battery positive and negative identification circuit in the activation board, which automatically identifies the positive and negative poles of the battery. It can be buckled without distinguishing, which is more convenient and safer

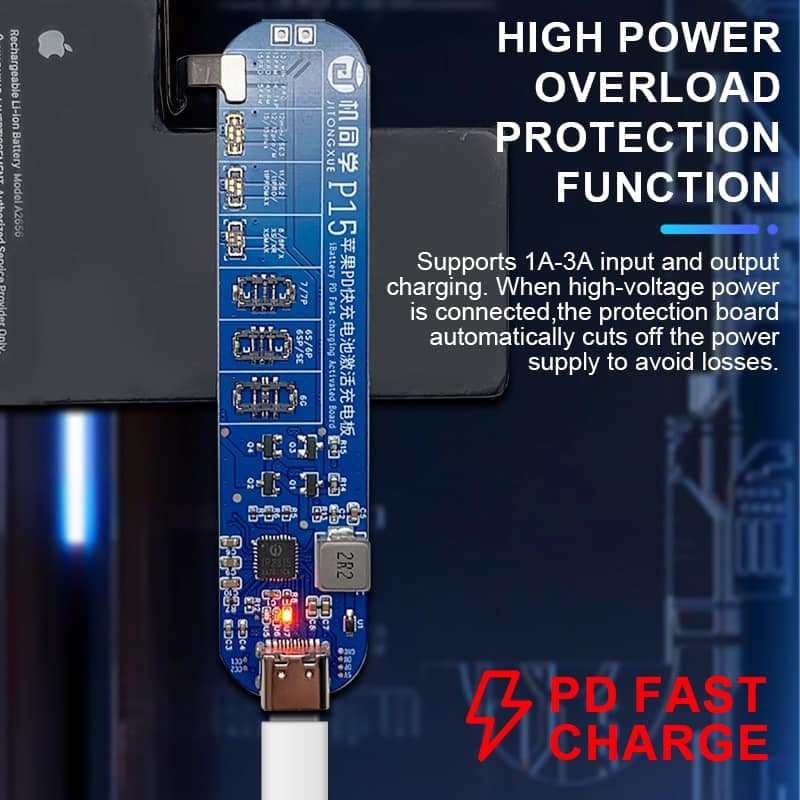

Supports 1A-3A input and output charging; when high-voltage power is connected, the protection board automatically cuts off the power supply to avoid losses

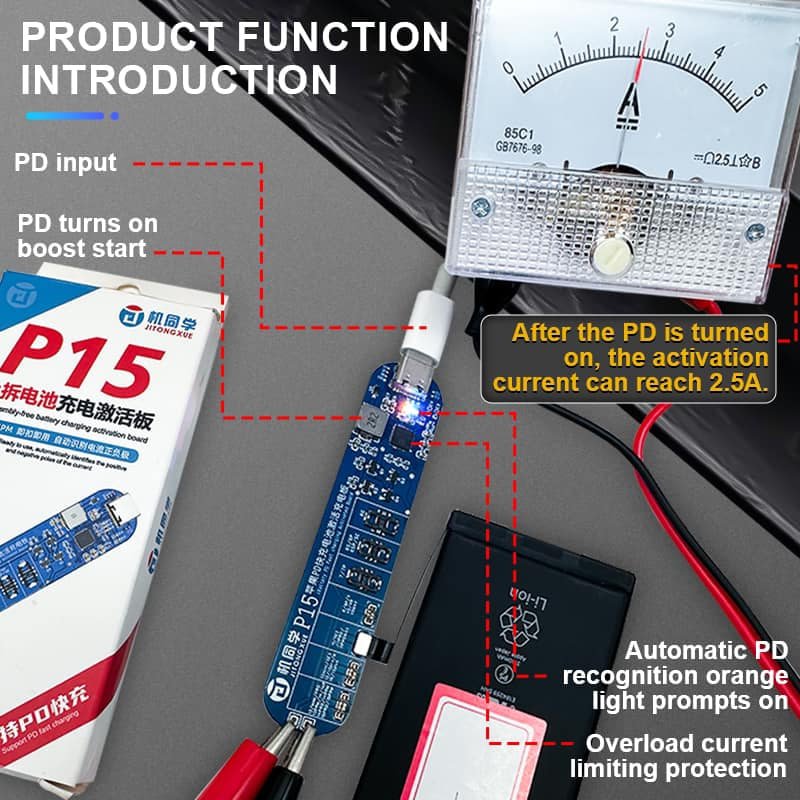

PD on: Orange light, 5V; Input: Green light; Charging: Blue light flashing; Fully Charged: Blue light always on
The battery activation board is equipped with a PD chip to realize the PD fast charging function
Power up the battery activation board. You can use the Type-C data cable to power up the battery activation board
Buckle the battery connector for the Apple series and press the marked model to find the corresponding battery holder, which is ready to use
Automatic activation: connect the powered Type-C data cable and fasten the battery buckle, and it will automatically activate without any operation
Automatically powers off when fully charged; when the battery is fully charged, the blue indicator light is always on

Package includes:
1 x Activation Board
