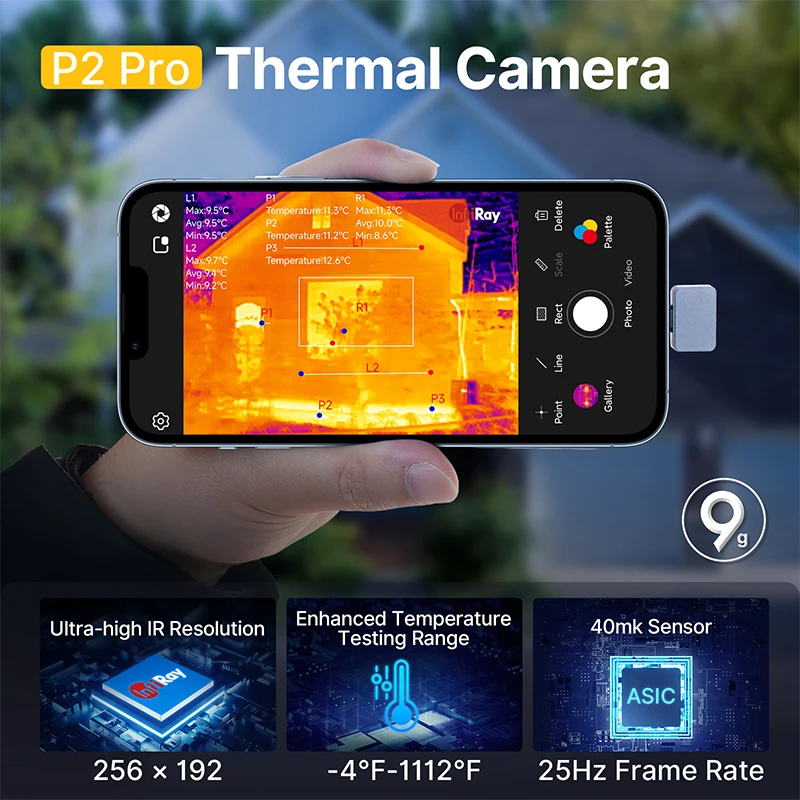

InfiRay P2 Pro Type-C Smartphones Thermal Camera
InfiRay P2 Pro Type-C Smartphones Thermal Camera Night Vision Infrared Thermal Imager with Magnetic Macro Lens (Grey)
Features

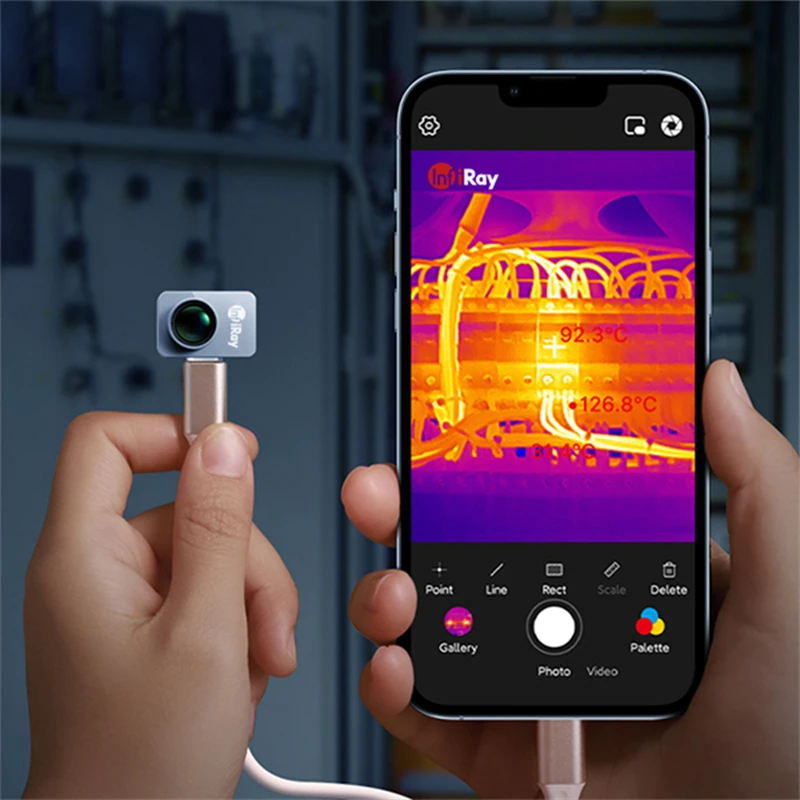

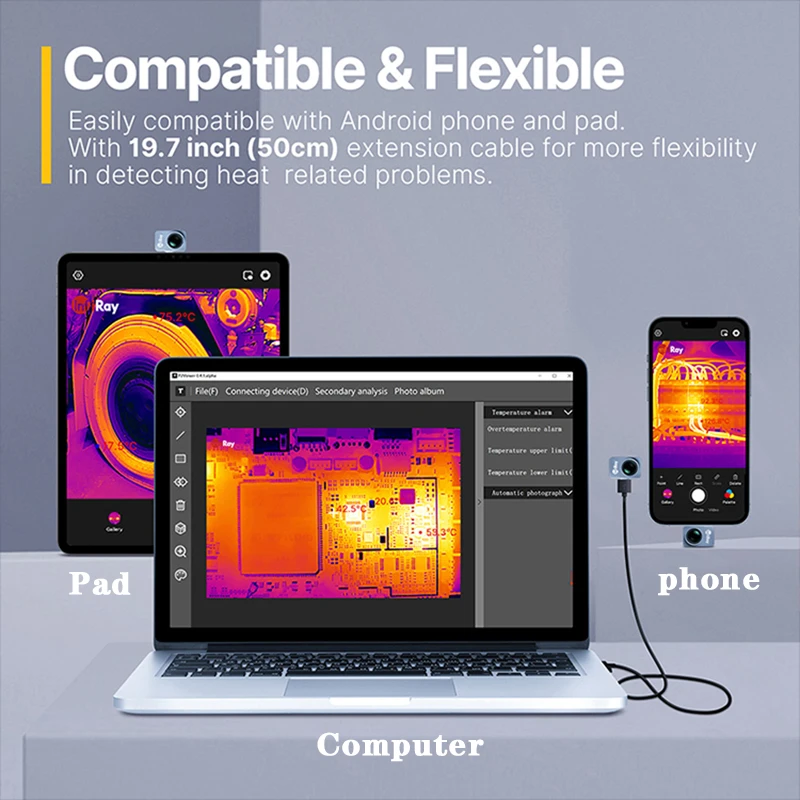

1. Lightweight accessory that transforms your Android device into a powerful thermal infrared camera
2. Thermal camera detects and marks the hot spot of high temperature.
3. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness.
4. Mainly applied to scenarios such as wilderness search and rescue, animal observation, security and patrol, riding and camping.
Specifications
1. Resolution: 256 x 192
2. Pixel Pitch: 12um
3. FOV: 56.0 degree x 42.2 degree
4. Frame Rate: 25Hz
5. NETD: Less than or equal to 50mK 25 degree C F1.0
6. Operating Band: 8 ~ 14um
7. Recommended Operating Temperature: -10 degree C ~+55 degree C
8. Recommended Storage Temperature: -40 degree C ~+85 degree C
9. Power Consumption: 350mW
10. Processor: Self-developed ASIC chip
11. Lens Focal Length: 3.2mm
12. Lens Aperture: F1.1
13. Focusing Mode: Athermalized prime lens
14. Temperature Measurement Range: -20 degree C ~+170 degree C / -20 degree C ~+550 degree C
15. Measurement Accuracy: +/-2 degree C (+/-2% of reading, the greater shall prevail)
16. Temperature Correction: Emissisity, distance, envorenmental temperature
17. Palette: White / black-hot + 6 palette
18. Measurement Method: Point / Line / Plane temperature measurement
19. APP Information Sharing: Instant picture sharing
20. APP Data Analysis: Secondary temperature analysis and processing of images
21. APP Imaging Tool: Android 6.0 and above
22. App Update: Online update
23. Interface: Type-C
24. Dimensions: 27 x 18 x 9.8mm
25. Weight: 9g
